| Connection | DASH | A | B | B1 W/RING | C | D | E |
|---|---|---|---|---|---|---|---|
| 222-1 | 1 | 38.60 | 44.00 | 46.30 | 59.00 | 15.00 | 3.90 |
| 222-2 | 3 | 38.60 | 44.00 | 46.20 | 14.20 | 14.00 | |
| 222-3 | 3 | 39.00 | 44.00 | 45.20 | 13.00 | 14.00 | |
| 222-4 | 3 | 39.00 | 44.00 | 45.50 | 13.30 | 14.00 | |
| 222-5 | 1 | 38.80 | 44.00 | 46.00 | 13.30 | 15.80 | |
| 222-6 | 1 | 38.60 | 44.00 | 45.60 | 14.50 | 15.80 | |
| 222-7 | 3 | 37.70 | 43.00 | 45.40 | 13.90 | ||
| 222-8 | 3 | 37.40 | 47.00 | 48.50 | 13.00 | ||
| 222-9 | 3 | 37.40 | 43.20 | 45.00 | 16.50 | ||
| 222-10 | 1 | 38.30 | 44.00 | 45.40 | 16.50 | 7.90 | |
| 222-11 | 3 | 50.00 | 55.00 | 56.30 | 12.00 | 20.00 | |
| 226-1 | 3 | 51.00 | 56.00 | 59.00 | 67.00 | 13.20 | 3.80 |
| 226-2 | 3 | 50.50 | 56.00 | 58.20 | 68.20 | 13.20 | 3.80 |
| 226-3 | 3 | 49.70 | 55.40 | 57.80 | 65.70 | 13.40 | 3.80 |
| 226-4 | 3 | 50.30 | 56.30 | 58.00 | 66.60 | 13.40 | 3.80 |
| 226-5 | 1 | 50.60 | 56.00 | 57.80 | 68.00 | 12.80 | 3.80 |
| 226-6 | 1 | 50.50 | 56.00 | 57.80 | 66.40 | 12.40 | 3.80 |
| 226-7 | 1 | 51.00 | 56.00 | 58.00 | 67.00 | 13.20 | 3.80 |

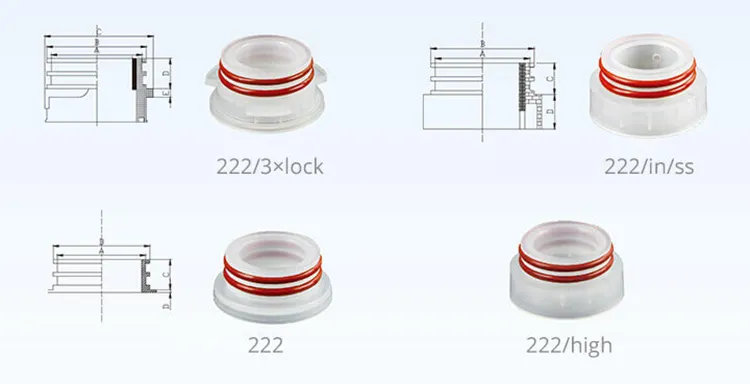

222 & 226 filter connector details
