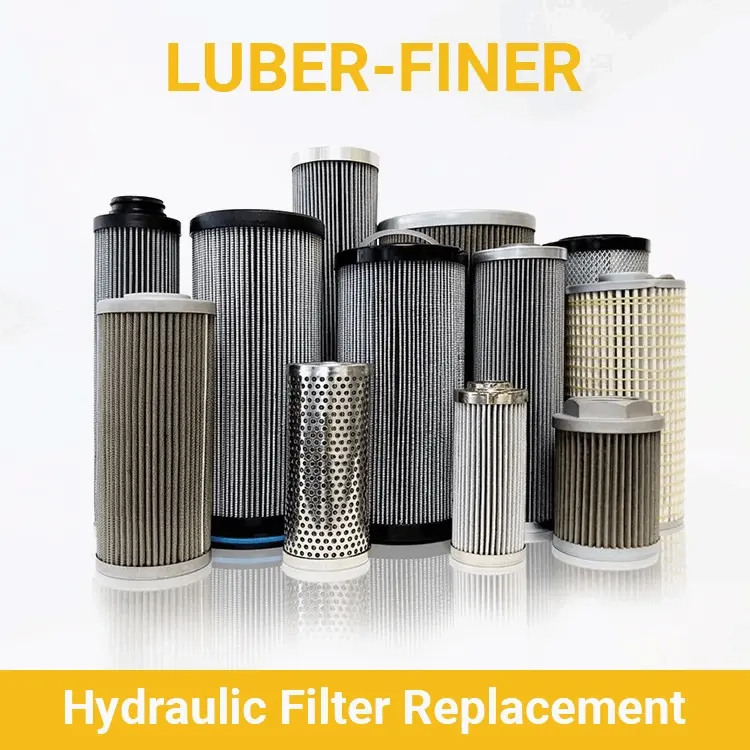

Heavy-Duty Hydraulic Oil Filter Catalog – LUBER-FINER

LUBER-FINER hydraulic oil filter replacement elements are engineered specifically for the extreme conditions found in the mining, shale oil & gas, and heavy-duty trucking sectors. In these high-intensity industries, hydraulic systems are the lifeblood of operation, and even microscopic contamination can lead to catastrophic system failure. Our replacement filters are designed to provide up to 98.7% filtration efficiency (based on ISO-4548-12), ensuring that sensitive control valves and high-pressure pumps remain free from abrasive wear.

Available in both advanced cartridge and rugged spin-on configurations, our aftermarket elements cover low, medium, and high-pressure applications. Manufactured to meet the rigorous standards of Champion Laboratories, these 100% interchangeable filters offer a high-performance alternative to OEM brands like Caterpillar, Komatsu, and Pall. Fleet managers and site supervisors can confidently rely on Luber-finer to reduce maintenance costs and extend equipment service life without compromising on filtration integrity or system reliability.

quick information
  • Reference Price: 4.7 USD
  • Supply Ability: 4700 pcs per month
  • SKU: UF00001577
  • MPN: UF00001577
quote now

Technical Specification

Replacing BrandLUBER-FINER
Main Filter TypeHydraulic oil filter
MOQ10 ea
ImagePart NumberFilter TypeFilter MediaRemoval RatingRef. DimensionThreadSeal
PN LP2525 filter replacement LP2525 Special Filter Cellulose 5μm@β2 OD150xID31xH360mm Nitrile
PN LFH8759G001627770 filter replacement LFH8759G001627770 Spin-On Filter Glass Fiber 10μm@β200, 12μm@β1000 OD95xH183mm 1 3/8"-12 UNF 2B Nitrile
PN LFH8759G filter replacement LFH8759G Spin-On Filter Glass Fiber 10μm@β200, 12μm@β1000 OD95xH183mm 1 3/8"-12 UNF 2B Nitrile
PN LH8640 filter replacement LH8640 Special Filter Wire Mesh 60μm OD69xID35xH103mm Viton
PN LH5719 filter replacement LH5719 Special Filter Cellulose 25μm@β2 OD50xID24xH151mm Nitrile
PN LH4998 filter replacement LH4998 Pressure Filter Cellulose 25μm@β2 OD60xID36xH135mm Viton
PN LFH506803 filter replacement LFH506803 Spin-On Filter Cellulose 3μm@β2 OD128xH170mm 1 1/2"-16 UN Nitrile
PN LFH8399 filter replacement LFH8399 Spin-On Filter Glass Fiber 3μm@β200, 5μm@β1000 OD128xH170mm 1 1/2"-16 UN Nitrile
PN LH4583 filter replacement LH4583 Pressure Filter Glass Fiber 3μm@β200, 5μm@β1000 OD96xID56xH332mm Nitrile
PN LH4234 filter replacement LH4234 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD45xID25xH112mm Nitrile
PN LH4233 filter replacement LH4233 Pressure Filter Glass Fiber 3μm@β200, 5μm@β1000 OD45xID25xH112mm Nitrile
PN LFH5004 filter replacement LFH5004 Spin-On Filter Glass Fiber 32μm@β200, 35μm@β1000 OD117xH297mm 1 3/4"-12 UN 2B Nitrile
PN LP7319 filter replacement LP7319 Spin-On Filter Glass Fiber 32μm@β200, 35μm@β1000 OD95xH242mm 1 3/8"-12 UNF 2B Nitrile
PN LH4742 filter replacement LH4742 Special Filter Cellulose 25μm@β2 OD178xID110xH450mm
PN LH4225 filter replacement LH4225 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD96xID56xH332mm Nitrile
PN LFH8705 filter replacement LFH8705 Spin-On Filter Glass Fiber 5μm@β200, 7μm@β1000 OD117xH297mm 1 3/4"-12 UN 2B Nitrile
PN LH5020 filter replacement LH5020 Suction Filter Cellulose 10μm@β2 OD93xID44xH470mm Nitrile
PN LH5843 filter replacement LH5843 Pressure Filter Glass Fiber 3μm@β200, 5μm@β1000 OD99xID42xH235mm Nitrile
PN LP9705 filter replacement LP9705 Return Filter Cellulose 5μm@β2 OD154xID54xH457mm Nitrile
PN LP60285 filter replacement LP60285 Return Filter Cellulose 5μm@β2 OD154xID67xH457mm Nitrile
PN LP97025 filter replacement LP97025 Return Filter Cellulose 25μm@β2 OD154xID54xH457mm Nitrile
PN LH438525 filter replacement LH438525 Special Filter Cellulose 25μm@β2 OD73xID27xH124mm Nitrile
PN LFM506010 filter replacement LFM506010 Spin-On Filter Cellulose 10μm@β2 OD128xH170mm 1 1/2"-16 UN Nitrile
PN LFH4224 filter replacement LFH4224 Special Filter Cellulose 25μm@β2 OD84xID14xH112mm Nitrile
PN LH42-58 filter replacement LH42-58 Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD152xID105xH427mm Nitrile
PN LH95900 filter replacement LH95900 Return Filter Glass Fiber 20μm@β200, 22μm@β1000 OD97xID43xH649mm Nitrile
PN LH11039V filter replacement LH11039V Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD55xID19xH122mm Nitrile
PN LH8506 filter replacement LH8506 Special Filter Cellulose 25μm@β2 OD140xID98xH427mm Nitrile
PN LFH22005 filter replacement LFH22005 Spin-On Filter Wire Mesh 125μm OD128xH170mm 1 1/2"-16 UN Nitrile
PN LFH5721 filter replacement LFH5721 Spin-On Filter Cellulose 10μm@β2 OD129xH182mm 1 1/2"-UN 2A Nitrile
PN LH11031V filter replacement LH11031V Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD144xID97xH483mm Viton
PN LH11034 filter replacement LH11034 Special Filter Glass Fiber 5μm@β200, 7μm@β1000 OD99xID57xH470mm Nitrile
PN LP970-25 filter replacement LP970-25 Return Filter Cellulose 25μm@β2 OD154xID54xH457mm Nitrile
PN LH4385-25 filter replacement LH4385-25 Special Filter Cellulose 25μm@β2 OD73xID27xH124mm Nitrile
PN LH95840 filter replacement LH95840 Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD97xID43xH327mm Nitrile
PN LH22123 filter replacement LH22123 Pressure Filter Cellulose 10μm@β2 OD60xID36xH244mm Viton
PN LH9227V filter replacement LH9227V Return Filter Wire Mesh 60μm OD99xID40xH220mm Nitrile
PN LH11035 filter replacement LH11035 Special Filter Glass Fiber 3μm@β200, 5μm@β1000 OD99xID57xH470mm Nitrile
PN LH95860 filter replacement LH95860 Return Filter Glass Fiber 20μm@β200, 22μm@β1000 OD97xID43xH327mm Nitrile
PN LH22151 filter replacement LH22151 Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD126xID92xH480mm Nitrile
PN LH8520 filter replacement LH8520 Special Filter Glass Fiber 20μm@β200, 22μm@β1000 OD100xID64xH464mm Nitrile
PN LH8544 filter replacement LH8544 Special Filter Cellulose 25μm@β2 OD150xID110xH450mm Viton
PN LH8532 filter replacement LH8532 Special Filter Cellulose 10μm@β2 OD96xID68xH171mm Guarnital
PN LAF5719 filter replacement LAF5719 Special Filter Cellulose 25μm@β2 OD50xID24xH151mm Nitrile
PN LH95303 filter replacement LH95303 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD47xID22xH84mm Nitrile
PN LH95820 filter replacement LH95820 Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD97xID43xH207mm Nitrile
PN LH95870 filter replacement LH95870 Return Filter Glass Fiber 5μm@β200, 7μm@β1000 OD97xID43xH649mm Nitrile
PN L197F filter replacement L197F Return Filter Cellulose 25μm@β2 OD154xID67xH457mm Nitrile
PN LH95221 filter replacement LH95221 Coreless Filter Glass Fiber 3μm@β200, 5μm@β1000 OD98xID65xH388mm Nitrile
PN LH95281 filter replacement LH95281 Pressure Filter Glass Fiber 3μm@β200, 5μm@β1000 OD99xID42xH235mm Nitrile
