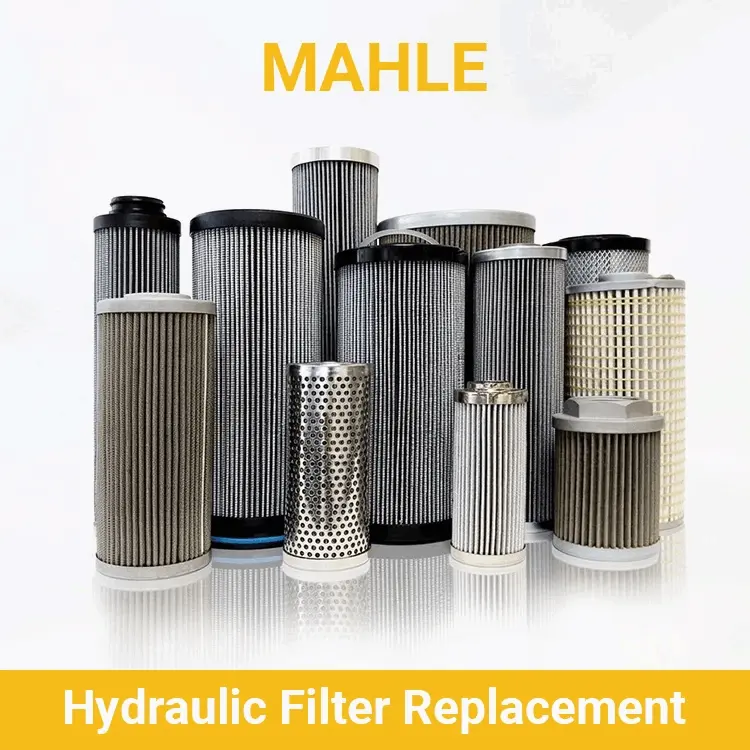

High Quality Hydraulic Oil Filter Catalog – MAHLE

MAHLE hydraulic oil filter replacement elements (formerly incorporating the expertise of the Industrial Filtration division) are engineered to meet the sophisticated demands of the global industrial and power generation markets. Since high-precision manufacturing systems, plastic injection molding machines, and wind turbine gearboxes rely on ultra-clean fluids to prevent component fatigue, strict contamination control is indispensable. Our aftermarket solutions use MAHLE’s proprietary multilayer filter media, designed to capture particles as small as 3-5 microns while maintaining exceptionally low flow resistance.

quick information
  • Reference Price: 4.8 USD
  • Supply Ability: 4800 pcs per month
  • SKU: UF00001583
  • MPN: UF00001583
quote now

Technical Specification

Replacing BrandMAHLE
Main Filter TypeHydraulic oil filter
MOQ10 ea
ImagePart NumberFilter TypeFilter MediaRemoval RatingRef. DimensionThreadSeal
PN PI171052DRG100 filter replacement PI171052DRG100 Suction Strainer Wire Mesh 125μm OD86xH139mm 1" BSP
PN PI1710-52-DRG100 filter replacement PI1710-52-DRG100 Suction Strainer Wire Mesh 125μm OD86xH139mm 1" BSP
PN 77661705 filter replacement 77661705 Suction Strainer Wire Mesh 125μm OD86xH139mm 1" BSP
PN 77680333 filter replacement 77680333 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD47xID25xH246mm Viton
PN 70541525 filter replacement 70541525 Spin-On Filter Cellulose 10μm@β2 OD129xH182mm 1 1/2"-UN 2A Nitrile
PN 77680366 filter replacement 77680366 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH255mm Viton
PN 77680416 filter replacement 77680416 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH255mm Viton
PN 77657208 filter replacement 77657208 Pressure Filter Cellulose 25μm@β2 OD83xID47xH255mm Viton
PN 77924046 filter replacement 77924046 DIN Return Filter Glass Fiber 10μm@β200, 12μm@β1000 OD58xID32xH249mm Nitrile
PN 77681067 filter replacement 77681067 Pressure Filter Wire Mesh 100μm OD47xID25xH94mm Viton
PN 77681042 filter replacement 77681042 Pressure Filter Wire Mesh 60μm OD83xID47xH255mm Viton
PN 77680978 filter replacement 77680978 Pressure Filter Wire Mesh 40μm OD47xID25xH172mm Viton
PN 77718802 filter replacement 77718802 Pressure Filter Wire Mesh 40μm OD83xID47xH255mm Viton
PN 77689078 filter replacement 77689078 Pressure Filter Wire Mesh 100μm OD83xID47xH255mm Viton
PN 70541523 filter replacement 70541523 Spin-On Filter Glass Fiber 10μm@β200, 12μm@β1000 OD136xH173mm 1 1/2"-16 UN 2B Neoprene
PN PX33-13-2-SMX10 filter replacement PX33-13-2-SMX10 Spin-On Filter Glass Fiber 10μm@β200, 12μm@β1000 OD136xH173mm 1 1/2"-16 UN 2B Neoprene
PN PI8608DRG200 filter replacement PI8608DRG200 Pressure Filter Wire Mesh 200μm OD47xID25xH172mm Viton
PN 77925019 filter replacement 77925019 DIN Return Filter Cellulose 10μm@β2 OD58xID32xH159mm Nitrile
PN PI24100RN filter replacement PI24100RN DIN Return Filter Glass Fiber 15μm@β200, 17μm@β1000 OD154xID90xH399mm Nitrile
PN PX37132MIC25 filter replacement PX37132MIC25 Spin-On Filter Cellulose 25μm@β2 OD136xH310mm 1 1/2"-16 UN 2B Nitrile
PN PI9560DRGVST100 filter replacement PI9560DRGVST100 Pressure Filter Wire Mesh 100μm OD83xID47xH512mm
PN PI9460DRGVST60 filter replacement PI9460DRGVST60 Pressure Filter Wire Mesh 60μm OD83xID47xH512mm
PN PI9360DRGVST40 filter replacement PI9360DRGVST40 Pressure Filter Wire Mesh 40μm OD83xID47xH512mm
PN PI9260DRGVST25 filter replacement PI9260DRGVST25 Pressure Filter Wire Mesh 25μm OD83xID47xH512mm
PN PI9160DRGVST10 filter replacement PI9160DRGVST10 Pressure Filter Wire Mesh 10μm OD83xID47xH512mm
PN PI8815DRG500V2A filter replacement PI8815DRG500V2A Special Filter Wire Mesh 500μm OD83xID47xH142mm
PN PI8560DRG100 filter replacement PI8560DRG100 Pressure Filter Wire Mesh 100μm OD83xID47xH512mm
PN PI8515DRG100V2A filter replacement PI8515DRG100V2A Special Filter Wire Mesh 100μm ID55xH428mm
PN PI8460DRG60 filter replacement PI8460DRG60 Pressure Filter Wire Mesh 60μm OD83xID47xH512mm
PN PI8360DRG40 filter replacement PI8360DRG40 Pressure Filter Wire Mesh 40μm OD83xID47xH512mm
PN PI8330DRG40V2A filter replacement PI8330DRG40V2A Special Filter OD83xID47xH255mm
PN PI8260DRG25 filter replacement PI8260DRG25 Pressure Filter Wire Mesh 25μm OD83xID47xH512mm
PN PI8160DRG10 filter replacement PI8160DRG10 Pressure Filter Wire Mesh 10μm OD83xID47xH512mm
PN PI5260SMXVST6 filter replacement PI5260SMXVST6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI5260SMVST6 filter replacement PI5260SMVST6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI5260PSVST6 filter replacement PI5260PSVST6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI5160SMX6 filter replacement PI5160SMX6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI5160SM6 filter replacement PI5160SM6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI5160PS6 filter replacement PI5160PS6 Pressure Filter Glass Fiber 5μm@β200, 7μm@β1000 OD83xID47xH512mm
PN PI4260SMXVST25 filter replacement PI4260SMXVST25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI4260SMVST25 filter replacement PI4260SMVST25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI4260PSVST25 filter replacement PI4260PSVST25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI4160SMX25 filter replacement PI4160SMX25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI4160SM25 filter replacement PI4160SM25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI4160PS25 filter replacement PI4160PS25 Pressure Filter Glass Fiber 20μm@β200, 22μm@β1000 OD83xID47xH512mm
PN PI3260SMXVST10 filter replacement PI3260SMXVST10 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH512mm
PN PI3260SMVST10 filter replacement PI3260SMVST10 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH512mm
PN PI3260PSVST10 filter replacement PI3260PSVST10 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH512mm
PN PI3160SMX10 filter replacement PI3160SMX10 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH512mm
PN PI3160SM10 filter replacement PI3160SM10 Pressure Filter Glass Fiber 10μm@β200, 12μm@β1000 OD83xID47xH512mm
